TO2225Q-104L – TPLO Plate Medium Elite, Left

$180.00

For osteotomy cut radius 21 mm or more and patients weighing up to 20 kg.

  • Converging, non-colliding screw trajectories for secure hold on tibial head
  • K-wire and Compression slots angled for even compression of osteotomy gap
  • Bendable in-plane at curved bridge for precise alignment with tibial shaft
  • Quadruple-lead threads for easy screw locking
  • Last node cuttable for reducing overall length

OsTi-Lok TPLO Plate Comparison

Code

Product Name

Min Saw
Radius (mm)

Patient Weight
Limit (Kg)

Length
L (mm)

Head Width
HW (mm)

Shaft Width
W (mm)

Max Thickness
T (mm)

TPLO Narrow Plates

TO15SQ-104LTPLO Plate Small Narrow, Left

15

15

44

18

7

2.5

TO15SQ-104RTPLO Plate Small Narrow, Right
TO18MQ-104LTPLO Plate Medium Narrow, Left

18

25

56

20

9

3.2

TO18MQ-104RTPLO Plate Medium Narrow, Right

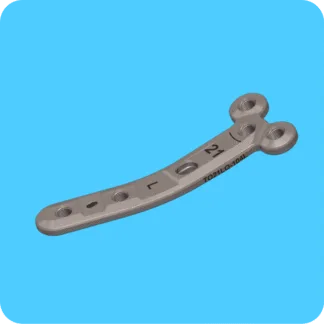

TO21LQ-104LTPLO Plate Large Narrow, Left

21

45

68

25

11

4.0

TO21LQ-104RTPLO Plate Large Narrow, Right

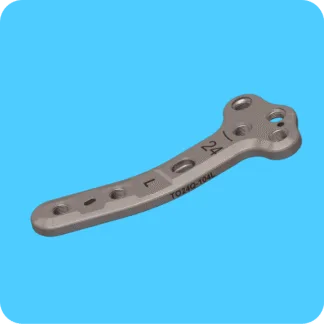

TO24Q-104LTPLO Plate X-Large Narrow, Left

24

60

66

26

11

4.5

TO24Q-104RTPLO Plate X-Large Narrow, Right

TPLO Standard Plates

TO1821QS-104L
TPLO Plate Small Std, Left

18

12

47

19

7

2.5

TO1821QS-104R
TPLO Plate Small Std, Right
TO2225QS-104L
TPLO Plate Medium Std, Left

21

20

58

24

9

3.2

TO2225QS-104R
TPLO Plate Medium Std, Right
TO2730QS-104L
TPLO Plate Large Std, Left

27

40

70

29

11

4.0

TO2730QS-104R
TPLO Plate Large Std, Right

TPLO Elite Plates

TO1821Q-104LTPLO Plate Small Elite, Left

18

12

57

19

7

2.5

TO1821Q-104RTPLO Plate Small Elite, Right
TO2225Q-104LTPLO Plate Medium Elite, Left

21

20

71

24

9

3.2

TO2225Q-104R
TPLO Plate Medium Elite, Right

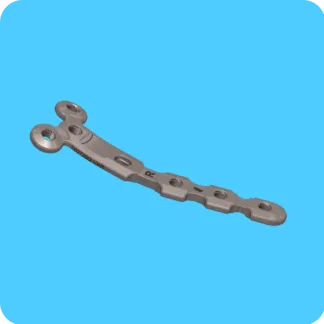

TO2730Q-104R
TPLO Plate Large Elite, Right

27

40

85

29

11

4.0

TO2730Q-104LTPLO Plate Large Elite, Left
