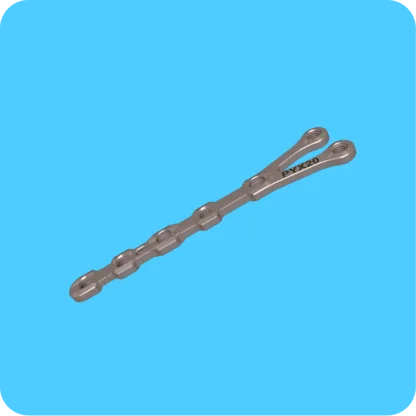

PYX20-050 – Y Plate 2.0, MINI

$209.00

  • This locking plate (PYX20-050) is designed to resist the weight-bearing loads of up to 5 kg in patients.  Specially designed for fractures of the distal Radius bone.
  • This plate can be bent and configured for better alignment to the bone on a wide range of fractures.
Categories: , Tag:

Y Plate OsTi-Lok MINI Comparison

Code

Patient Weight
Limit (Kg)

Screw
Holes

Compression
Holes

Length
L (mm)

Max Thickness
T (mm)

Width
W (mm)

Overall Width
OW (mm)

Arm Length
AL (mm)

PYX20-050

5

8

3

56

2.1

4.6

14.1

12.3

PYX15-050

3

8

3

47

1.6

4.6

11.6

10

OWmin*
Arms can be bent together to archive 10mm overall width.
