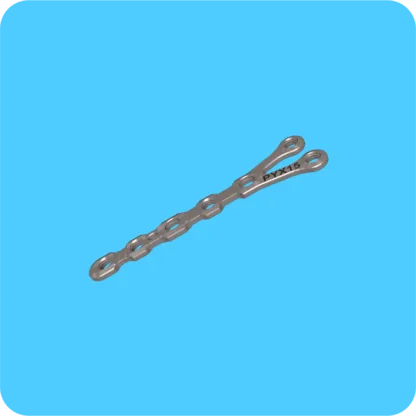

PYX15-050 – Y Plate 1.5, MINI

$205.00

  • This locking plate (PYX15-050) is designed to resist the weight-bearing loads of up to 3 kg in patients.  Specially designed for fractures of the distal Radius bone.
  • This plate can be bent and configured for better alignment to the bone on a wide range of fractures.

2 in stock

Categories: , Tag:

Description

Y Plate OsTi-Lok MINI Comparison

Plate

Patient Weight
Limit (Kg)

Screw
Holes

Compression
Holes

Overall length
L (mm)

Fork width
P (mm)

Fork length
Q (mm)

Max thickness
T (mm)

Node width
W (mm)

Node spacing
S (mm)

PYX20-050

5

8

3

56.0

14.1

14.5

2.1

4.6

7.0

PYX15-050

3

8

3

46.6

11.6

10.3

1.6

4.6

6.0
