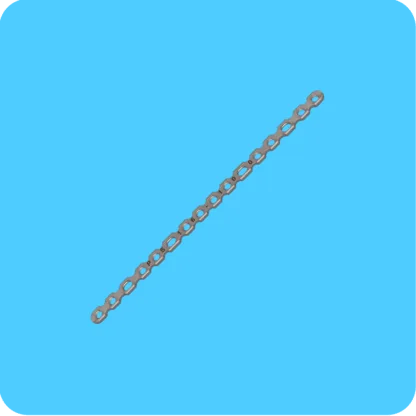

PS16Q-104 – 16-Hole Small Plate, Quad

$210.00

  • This locking plate (PS16Q-104) is designed to resist the weight-bearing loads of up to 10 kg patients on its appendicular skeleton.
  • This plate can be bent and configured for better alignment to the bone on a wide range of fractures.
Categories: , Tag:

16 Hole Plate OsTi-Lok Comparison

Code

Patient Weight
Limit (Kg)

Screw
Holes

Compression
Holes

Length
L (mm)

Max Thickness
T (mm)

Width
W (mm)

Node Spacing
S (mm)

PS16Q-104

10

16

4

156

2.5

7

9.3

PM16Q-104

20

16

4

192

3.2

9

11.5

PL16Q-104

40

16

4

240

4.0

11

14.5
