PXL15-050 – Long Plate 1.5, MINI

$219.00

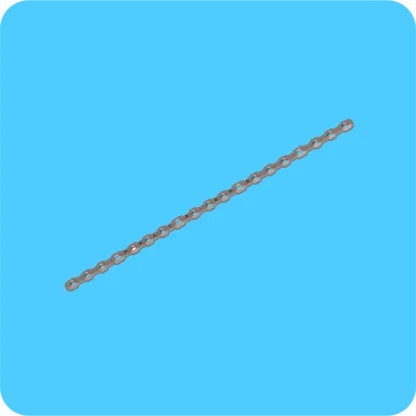

This titanium alloy locking plate (PXL15‐050) is designed to resist the weight-bearing loads up to 3 kg patients and can be bent or configured for better alignment to the bone on a wide range of fractures including metaphyseal fractures. The additional length and locking nodes on the plate allow for versatility when needing additional fixation on either side of the fracture.

4 in stock

Categories: , Tag:

Description

Straight Plate OsTi-Lok MINI Comparison

Plate

Patient Weight
Limit (Kg)

Screw
Holes

Compression
Holes

Overall length
L (mm)

Max thickness
T (mm)

Node width
W (mm)

Node spacing
S (mm)

PX20-050
(No longer Available)

5

13

3

94.4

2.1

4.6

7

PXL20-050

5

19

3

136.4

2.1

4.6

7

PX15-050
(No longer Available)

3

13

3

82.4

1.6

4.6

6

PXL15-050

3

19

3

118.4

1.6

4.6

6


Additional information

Plates
